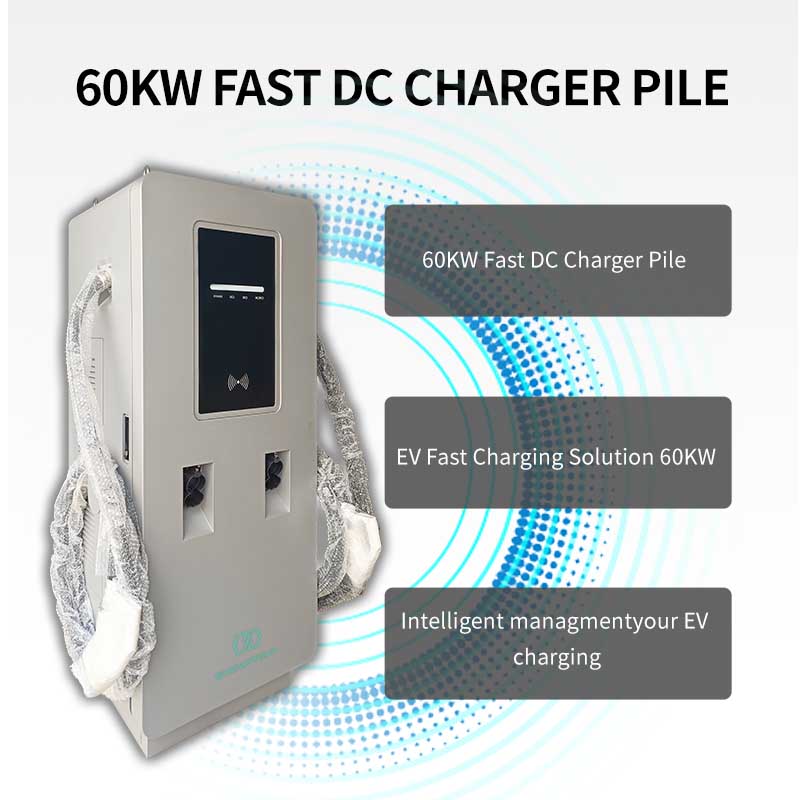

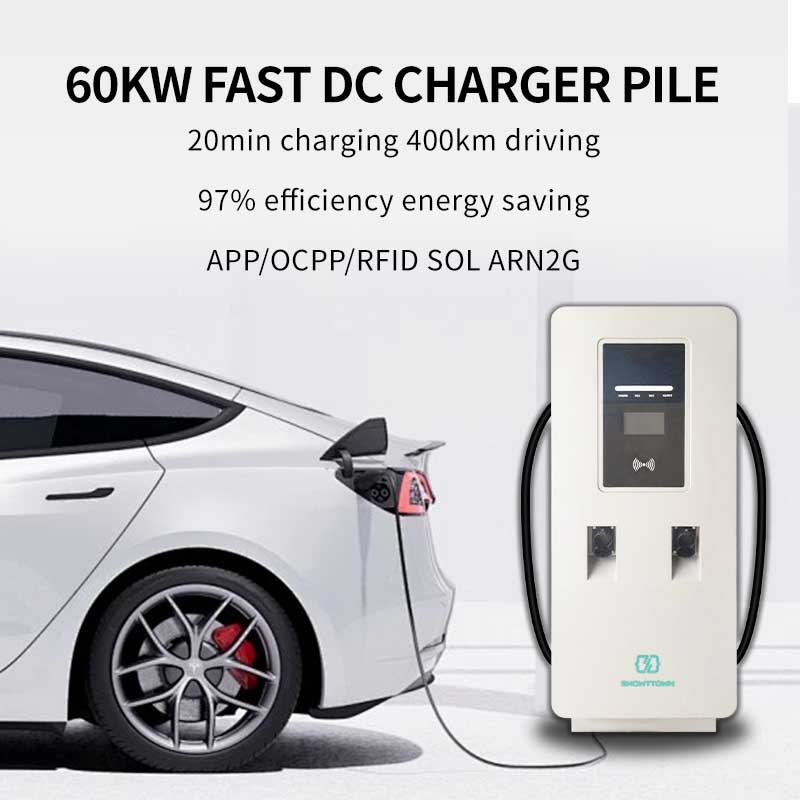

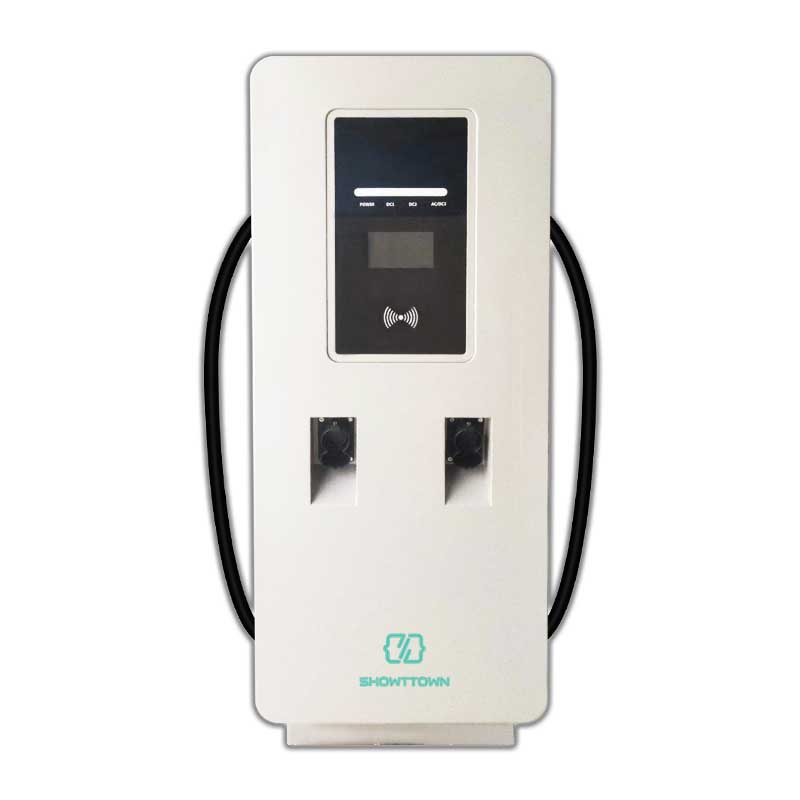

DC EV CHARGER
Ccs Chademo Ce Rfid Ip54 60kw 3 Phase Ocpp Dc Ev Charger Station Level3 DC Ev Charging Station
Highlights
* 60kW - 150kW
* double Charging Outlet CCS2
* 10。1inch LCD Screen
* OCPP 1.6
* IP54
* 12 Months Warranty
* Time-saving - Fast charging
* Power saving - High conversion efficiency and low standby power consumption
* High Safety - Dual protection to both manual operation and vehicles
| Item Number | ST-60KW-EU01 | ST-90KW-EU01 | ST-120KW-EU01 | ST-150KW-EU01 |
| Input rating | 400V 3ph 125A max. | 400V 3ph 160A max. | 400V 3ph 200A max. | 400V 3ph 250A max. |
| Number of phase / wire | 3ph / L1, L2, L3, PE | |||
| Output power | 60KW | 90KW | 120KW | 150KW |
| Output rating | 200V-1000V DC | |||
| Protection | Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault | |||
| Display | 10.1” touch screen | |||
| Support language | English (Other languages available upon request) | |||
| Charge option | Charge options to be provided upon request: Charge by duration, Charge by energy, Charge by fee | |||
| Charging interface | CCS2 | |||
| User authentication | Paypal and (or) NFC card | |||
| Network interface | Ethernet (standard); Wi-Fi, 4G (optional) | |||
| Open Charge Point Protocal | OCPP1.6 / OCPP2.0 | |||
| Operating temperature | minus 20 ℃to+55℃ (derating when over 55℃) | |||
| Storage temperature | -40 ℃to+70℃ | |||
| Humidity | < 95% relative humidity, non-condensing | |||
| Ingress protection | IP54 | |||
| Charging cable length | 5m | |||
| Dimension (W*D*H) mm | 700*585*1710 | 700*585*1710 | 700*585*1710 | 930*610*1950 |
| Weight | 280kg | 320kg | 360kg | 380kg |
